RFID Card Reader Device
High-efficiency contactless card reader for secure access
$800.00

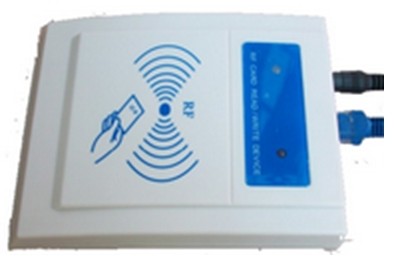

HF RFID Reader
Introduction:
The T-201 includes RS232 and RS485 connections. It can be used as a whole products, and also as a chip-set module without casing, suitable for integration into any other equipment. It includes an antenna, LEDs and a buzzer. All the Mifare cards can be read and written. The ISO 14443 type A and B cards can also be accessed on request. It also can be used parking-meter, door-control, transportation, oil-control, access control identifications.
Technical specifications:
frequency | 13.56 MHz |
operating range | 0°C to +50 °C |
storage range | -40 °C to +85 °C |
humidity range | 30 % to 95 % non condensing |
size | 30mm (height) x 110 mm (width) x 145 mm (longth) |
Host interface | Serial RS232 or RS485 |
power supply voltage | DC5V or 12V |
power supply current | <100 mA |
BPS | 9600-115200bps |
Support cards | MF1S50/70,MF Light, MF Pro, Ultralight, SLE44R35,SLE44R31, IS014443 type B |
operating distance | up to 5 cm |
Operating system | Windows 98/me/2000/NT/XP, UNIX, LINUX |
