Contactless Smart Card Reader
Efficient and secure card authentication device
$99.00

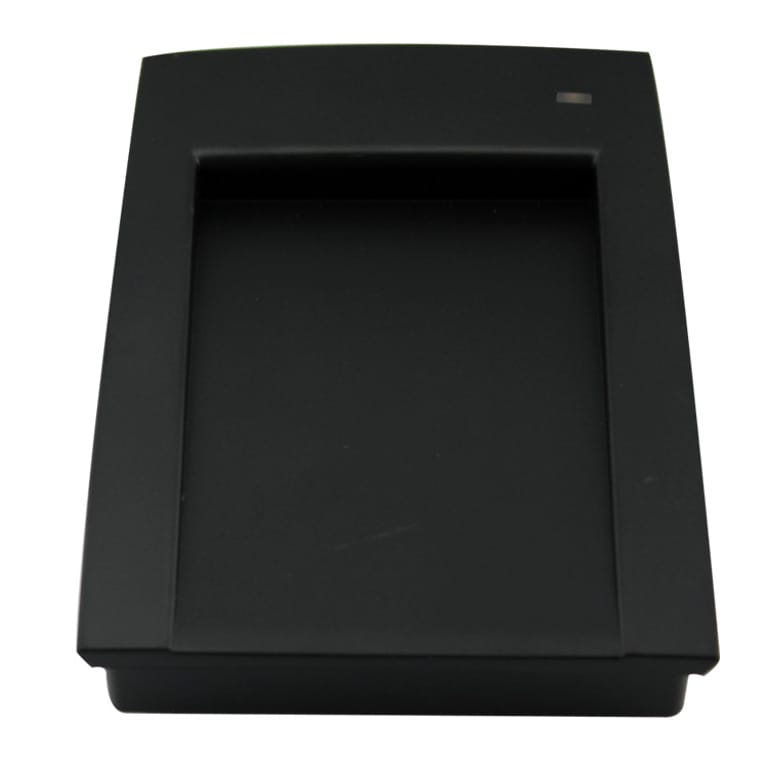

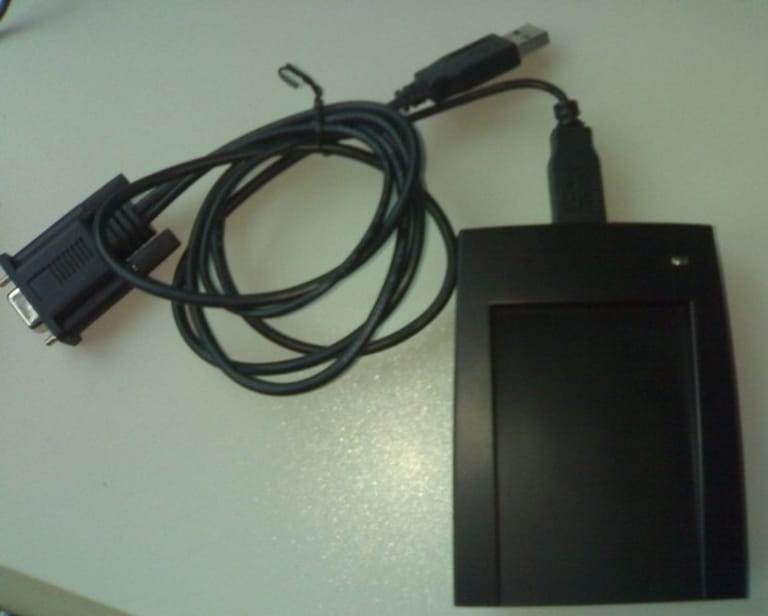

HF Contactless Reader-writer T-302A
USB Plug & Play Reader-writer
Specifications
Multi-Protocol HF Desktop USB RFID Reader
support both ISO15693& ISO14443A /B
Multi-Protocol HF Desktop Reader | |
Standard/Protocol | Support mainstream ISO/IEC15693, ISO14443TypeA/TypeB protocol tag (TI, PHILIPS, ST,INFINEON, FUJITSU, EM…) |
Reader Size | 105mm*70mm*11mm |
Reader Weight | 160g |
Power | Low power dissipation design, USB power supply |
Reader Antenna | Built-in TX/RX antenna with effective distance up to 150mm |
Frequency | 13.56MHz |
Interface | USB 1.1,2.0 interface. |
Application | logistics, access control, attendance system, anti-counterfeit and |
Work Mode | Advanced tag processing algorithm, high identification rate |
Payment terms | 100% TT prepaid |
Read Distance | Reading distance depends on protocol, antenna, tag and working environment |
Other Features | Advanced tag processing algorithm, high identification rate; Provide DLL and demonstration software to facilitate development; Operating Temp.: -10~+60 °C; Storage Temp.: -25~+80 °C; |
Pls kindly contact with us about your detailed requirement, Below items with different price:
USB T-302A01 read only 14443A cards
USB T-302A02 read only 15693 cards
USB T-302A03 read/ write 14443A cards
USB T-302A04 read/write 15693 cards
USB T-302A05 reader/writer 14443A/ B and 15693 card
RS232 T-302B01 read only 14443A cards
RS232 T-302B02 read only 15693 cards
RS232 T-302B03 read/ write 14443A cards
RS232 T-302B04 read/write 15693 cards
RS232 T-302B05 reader/writer 14443A/ B and 15693 card
