Outdoor Panel Antenna

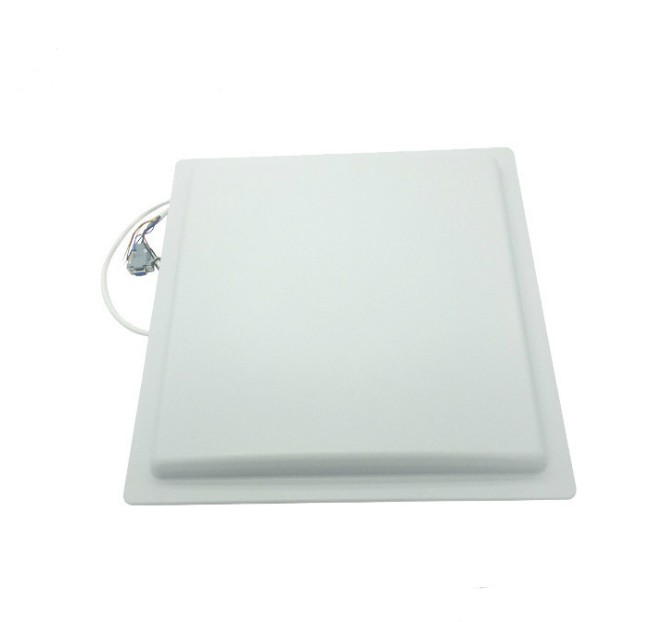

                               UHF RFID integrated reader T-130

Size：445mmx445mmx55mm

Weight: 2600g

T-130 is a high performance UHF RFID integrated reader.

It is designed upon fully

self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control system.

FEATURES

_ Self-intellectual property;

_ Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;

_ 865-868MHz  / 902~928MHz frequency band(frequency customization optional);

_ FHSS or Fix Frequency transmission;

_ RF output power up to 30dbm(adjustable);

_ 12dbi antenna optional with effect distance more than 10m*;

_ Support auto-running, interactive and trigger-activating work mode;

_ Low power dissipation with single +9 DC power supply;

_ Support RS232, RS485, Wiegand interface;

_ Provide DLL and Demonstration Software Source code to facilitate further development.

CHARACTERISTICS

Absolute Maximum Rating

Electrical and Mechanical Specification
Under TA＝25℃，VCC＝+9V unless specified

INTERFACE

* Effective distance depends on tag and environment.

Remark:

1. Specifications are subject to change, please pay attention to our latest one.

2.RFIDtwin reserve the right to the final interpretation of the above terms.
