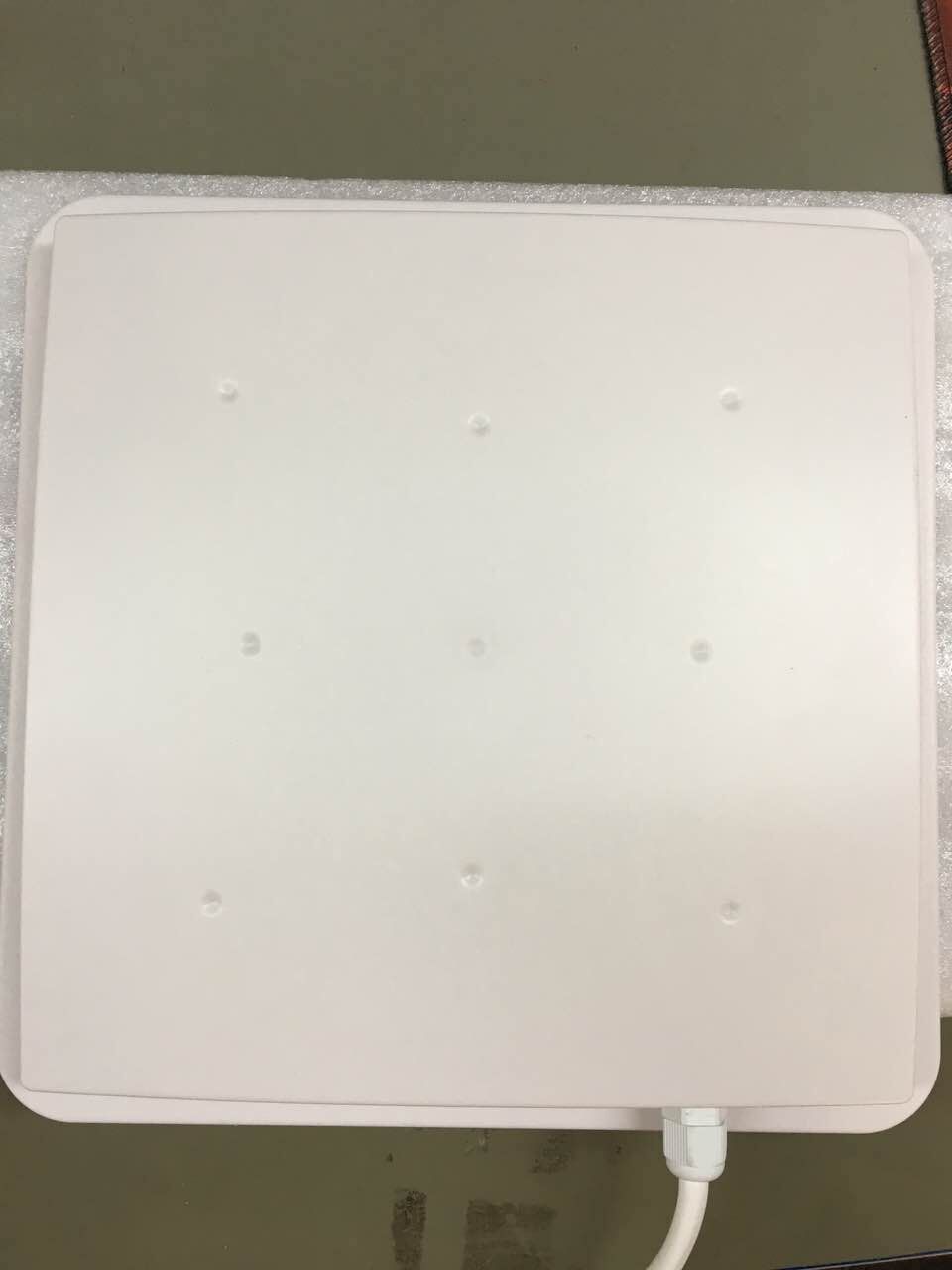

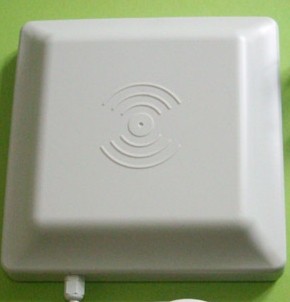

UHF RFID Integrated Antenna Reader T-131

                                          UHF RFID Integrated Antenna Reader T-131

GENERAL DESCRIPTION

T-131 is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control system.

FEATURES

Self-intellectual property;

Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;

865-868MHz/ 902~928MHz frequency band(frequency customization optional);

FHSS or Fix Frequency transmission;

RF output power up to 30dbm(adjustable);

8dbi antenna optional with effect distance up to 6m*;

Support auto-running, interactive and trigger-activating work mode;

Low power dissipation with single +9 DC power supply;

Support RS232, RS485, Wiegand interface;

Provide DLL and Demonstration Software Source code to facilitate further development.

CHARACTERISTICS
Absolute Maximum Rating

Electrical and Mechanical Specification
Under TA＝25℃，VCC＝+9V unless specified

INTERFACE

 * Effective distance depends on antenna, tag and environment.
