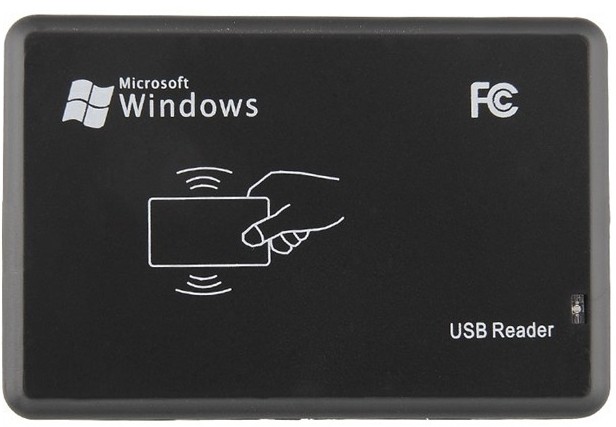

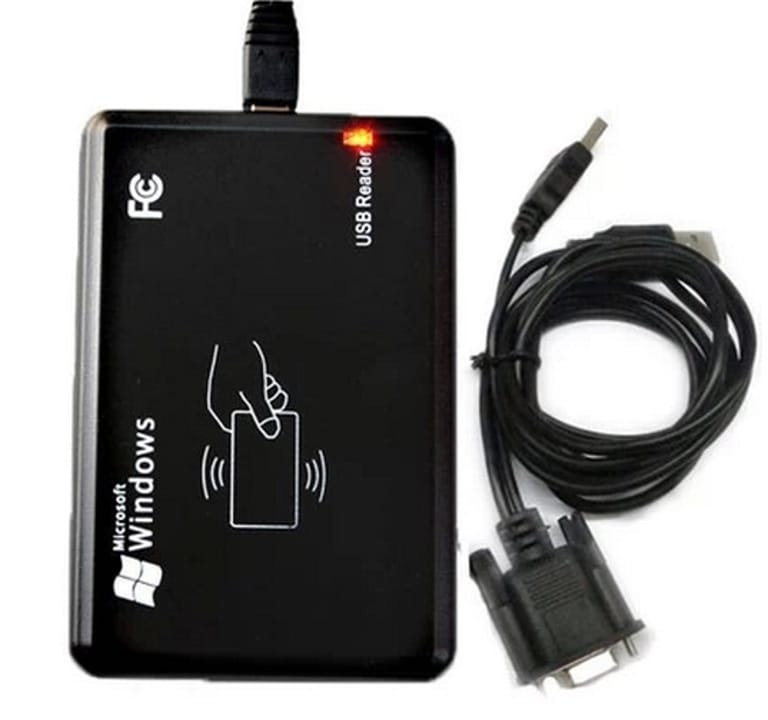

USB and RS232 RFID Card Reader

Compatible with Microsoft Windows

$99.00

HF Contactless reader-writer T-303A

USB Plug & play reader/ writer

Overview:

USB-Reader plug & play reader/writer device is one type simple, easy to operate, stable,low cost, and high performance 13.56MHz contactless IC card reader/writer.

It's able to read and write MifareS50 tag,S70 tag(ISO14443A),  2nd generation identify ID(ISO14443B),TI ICODE2(ISO15693).

Adopting with advanced plug & play, USB port without driver core technology (HID Protocol).

Reader connect with PC through USB port, no USB driver request and easy for user to

operate and maintain.

Reader embedded with"watchdog"circuit to control the reliable working, this device

support ISO14443 TYPEA/B ISO15693 protocol contactless IC tag.

Reader supply along with many different plat forms drive development kit and demo

program for operate RF tag all functions.

Further more this device has function of automatically detect tag operation. Supply various types of interface DLL (dynamic link library DLL) and development platform drive

SDK, Demo Program.



Parameter
.Tag type : ID IC(14443AB 15693) 2nd Generation Identify Cards
.Appearance: Black
.Working frequency :13.56MH
.Communication format : USB Port" Plug & Play"
.Reading range : >60mm
.Reading time : <100ms
.Output interface : USB Port   RS232 Port  (optional)
.Output interface : standard USB1.1 (plug & play)
.Power supply : USB port  5V
.Size:104*68*10mm



Pls kindly contact with us about your detailed requirement to get right RFID readers with better price, Below items with different price:

USB reader T-303A01 read only 14443A cards

USB reader T-303A02 read only 15693 cards

USB reader T-303A03 read/ write 14443A cards

USB reader T-303A04 read/write 15693 cards

USB reader T-303A05 reader/writer 14443A/ B and 15693 card

RS232 Reader T-303B01 read only 14443A cards

RS232 Reader T-303B02 read only 15693 cards

RS232 Reader T-303B03 read/ write 14443A cards

RS232 Reader T-303B04 read/write 15693 cards

RS232 Reader T-303B05 reader/writer 14443A/ B and 15693 card
